Description
lynx fahrradtasche Troxus Lynx Urban 20in Fat Tire E-bikeBetter than ever! The new 2024 Lynx compact fat tire 750W E bike by TROXUS is a perfect blend of high performance and convenience! This Class 3 E bike model is a great option for street or trail! Boasting a compact frame and 20" Kenda Fat Tires, the Lynx is rugged, strong, and capable. A 750 Watt Bafang motor and 28Ah Samsung Li on Battery are just a few of the features that make this bike stand out in the crowd. Enjoy a range of 33 miles with no
Better than ever! - The new 2024 Lynx compact fat tire 750W E-bike by TROXUS® is a perfect blend of high performance and convenience!
This Class 3 E-bike model is a great option for street or trail! Boasting a compact frame and 20" Kenda Fat-Tires, the Lynx is rugged, strong, and capable. A 750 Watt Bafang® motor and 28Ah Samsung Li-on Battery are just a few of the features that make this bike stand out in the crowd.
Enjoy a range of 33 miles with no pedaling as all of this distance and power pairs well with the 48-Volt, 20Ah (960Wh) Lithium Ion battery pack. Max speed tops out at 28 MPH with Pedal Assist and maximum range is a solid 60 Miles per charge!
View the complete Troxus E-Bike Catalog here.
TROXUS Lynx 20" Features
- 28 MPH Top Speed
- Up to 60 Mile Range
- 750 Watt Bafang Hub Motor
- 48 Volt 20 Amp Hour Samsung Cell Battery
- 400 Pound Payload Capacity
- Bluetooth Connected Display
- UL-2849 Certified
- 5 Year - 5,000 Mile Troxus Warranty
- Available in Red, Black, and Gray Finishes
- Lynx Service Manual Available Here
Electronic System
- Motor: Bafang® 48V/750W Hub-Drive Motor, 86Nm Max. Torque
- Battery: UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung® Cells
- Display: Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging
- Throttle: Thumb Throttle on Handlebar
Components
- 6061 T6 Aluminum Step-Through Frame
- Front Suspension Fork Travel 80 MM
- KMC® Z7 Chainset
- Aluminum 46T Square Taper 165 MM w/ Single Alloy Chainguard Crankset
- Shimano® 7-Speed Rear Derailleur
- Shimano® 7-Speed 14-28T Cassette
- Kenda® 20" x 4" Tires
- Bafang® 48V 750W 86Nm Rear Hub
- Black Stainless 13G Front and 12G Rear Spokes
- Tektro® M280 Mechanical Disc Brakes
- Forged Alloy 30.9 x 350 MM Seat Post
- Alloy 31.8 x 620 MM Handlebar
- Ergonomic Comfort Grip
- Alloy 9/16" Platform Pedals w/ Reflectors
- Gineyea Sealed Bearing Headset
Lynx Speed / Range / Weights
- Max Speed: Up to 20 MPH on throttle, 28 MPH on Pedal Assist
- Range: Up to 60 Miles Per Charge
- Weight Limit: 400 Pounds
- Net Weight: 77.2 Pounds

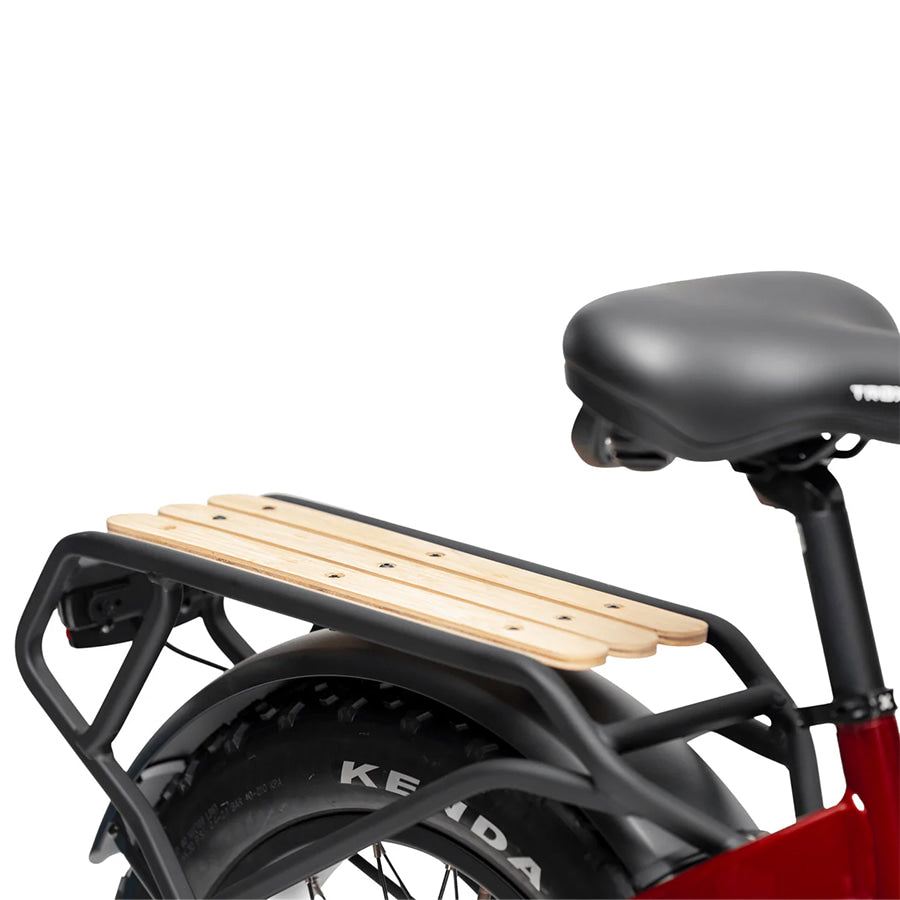

- Rack: Alloy Front and Integrated Rear
- Fenders: Alloy w/ Alloy Hardware
- Kickstand: Adjustable Side Model
Lynx Geometry
- Frame Size: Universal
- Wheel Size: 20"x4.0"
- Fork Travel: 80 MM
- Fork Height: 440 MM
- A - Seat Tube Length: 375 MM
- B - Seat Tube Angle: 71º
- C - Head Tube Length: 145 MM
- D - Head Tube Angle: 68º
- E - Effective Top Tube Length: 645 MM
- F - Bottom Bracket Height: 285 MM
- G - Bottom Bracket Drop: 10 MM
- H - Chainstay Length: 425 MM
- I - Fork Offset: 46 MM
- J - Wheelbase: 1148 MM
- K - Frame Reach: 460 MM
- L - Frame Stack: 538 MM
Compatible Troxus Accessories
- Troxus Front Rack and Basket Holder
- Troxus Basket
- ROCKBROS Leakproof Thermal Meal Bag for Rear Rack
0~5 Level Pedal Assist
3A / 100-240V Input / 54.6V Output
Front Light, Rear Light w/ Turn & Hazard Signals
48Vx22A/12V
