Description

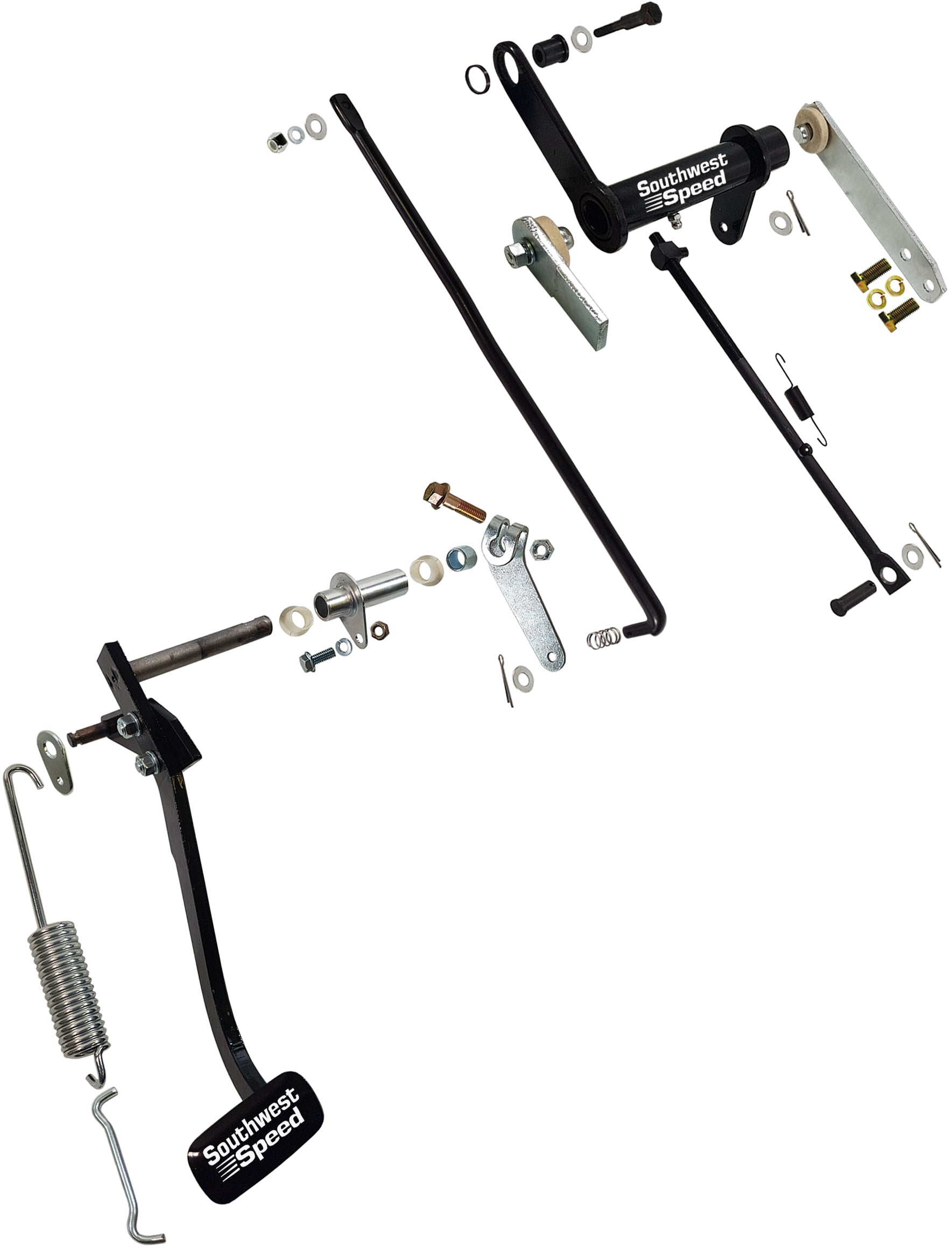

clutch pedal replacement CLUTCH PEDAL & LINKAGE,1957 CHEVY,3/4" Z-BAR STUDS,RODS,BRACKETS,BUSHINGSBrand New Southwest Speed Factory Replacement Clutch Pedal & Clutch Linkage Kit that fits all 1957 Chevy Passenger Cars with Manual Transmissions (SWS Part # 650 4634 and # 650 4643) This Southwest Speed clutch pedal and clutch linkage kit is a reproduction of the original parts used on 1957 Chevy Passenger Cars with manual transmissions This Southwest Speed clutch pedal linkage kit is a reproduction of the original clutch linkage used on 1957 Chevy
Brand New Southwest Speed Factory Replacement Clutch Pedal & Clutch Linkage Kit that fits all 1957 Chevy Passenger Cars with Manual Transmissions (SWS Part # 650-4634 and # 650-4643)
This Southwest Speed clutch pedal and clutch linkage kit is a reproduction of the original parts used on 1957 Chevy Passenger Cars with manual transmissions
This Southwest Speed clutch pedal linkage kit is a reproduction of the original clutch linkage used on 1957 Chevy Passenger Cars with manual transmissions > The parts in this clutch pedal and clutch linkage kit do not have the GM casting numbers but will look, fit, and perform just like original > If you are doing a restoration of a 1957 Classic Chevy or just want the correct components for the clutch pedal and clutch linkage to finish that rod project, this is the perfect kit!
Kit Includes:
-
Southwest Speed Clutch Bell Housing Bracket (#650-4611)
- Includes the 3/4" diameter pivot stud
- Factory Reproduction
- Length: 7 7/8"
- Width: 1 3/8"
- Thickness: 1/4"
- One end bolts to the clutch bell housing & other end connects to the clutch cross shaft "Z" bar for added support
- Fabricated from steel
-
Southwest Speed Clutch Cross Shaft "Z" Bar (#650-4615)
- Swivels on the two 3/4" diameter pivot balls
- Factory Reproduction
- Width: 6"
- One end connects to the clutch pedal push rod, & other end connects to the adjusting clutch fork push rod
- Dramatically improves clutch movement after replacing the worn out factory clutch cross shaft "Z" bar
-
Southwest Speed Clutch Frame Bracket (#650-4617)
- Includes the 3/4" diameter pivot stud
- Factory Reproduction
- Length: 3 1/2"
- Width: 1 1/2"
- One end Welds to the frame & the other end connects to the clutch cross shaft "Z" bar
-
Southwest Speed Clutch Fork Adjusting Push Rod (#650-4621)
- Includes clutch fork adjusting push rod, threaded swivel block, clevis pin, two flat washers, & two cotter pins
- Factory Reproduction
- Length: 11 1/4"
- Connects the adjusting clutch fork push rod to clutch cross shaft "Z" bar
- Fabricated from Steel
-
Southwest Speed Clutch Fork Adjusting Push Rod Anti-Rattle Spring (#650-4622)
- 3 1/8" Long Compressed from it's Relaxed Position
- Designed to the exact spring rate as the original
- Factory Reproduction
- Helps to Eliminate Clutch Pedal Linkage Rattles & noises
- Heavy duty spring for the longer life
-
Southwest Speed Cross Shaft Felt Washer (#650-4623)
- Includes a pair
- Factory Reproduction
- Installs between the bell housing bracket & the Cross Shaft, and between the frame bracket & the cross shaft
- Designed to keep the lubricating grease clean for the ball ends on the cross shaft pivot studs
- Outside Diameter: 1/4"
- Inside Diameter: 9/16"
- Thickness: 1/4"
-
Southwest Speed Cross Shaft Bushing & Bolt Kit (#650-4624)
- Steel bolt with black oxide finish
- Factory reproduction
- Corrosion-resistant lock nut with nylon insert
- Required for attaching the clutch pedal push rod to the clutch cross shaft
- Delrin bushings designed to provide smoother movement & greater durability
- Includes one steel bolt, two delrin bushings, & the necessary hardware to mount the clutch pedal push rod to the clutch cross shaft
- Southwest Speed Clutch Pedal Push Rod (#650-4630)
- Runs through the firewall & connects the Clutch Pedal to Cross Shaft
- Factory Reproduction
- Length: 16 1/2"
- Fabricated from Steel
-
Southwest Speed Clutch Pedal Cross Shaft Sleeve (#650-4658)
- 5/8" I.D.
- Mounts under the dash
- Factory Reproduction
- Correctly Spaces the clutch pedal from the brake pedal
- Fabricated from steel
- Mounting Hardware included for clutch pedal push rod
-
Southwest Speed Clutch Pedal Cross Shaft Sleeve Nylon Bushings (#650-4659)
- 5/8" I.D.
- Includes a Pair
- Mounts on each end of the cross shaft sleeve under the dash
- Factory Reproduction
- Nylon Bushings
-
Southwest Speed Clutch Pedal Cross Shaft Sleeve Spacer (#650-4660)
- 5/8" I.D.
- Acts as a spacer between the cross shaft sleeve & splined bell crank arm under the dash
- Factory Reproduction
- Fabricated from steel
-
Southwest Speed Clutch Pedal Assembly (#650-4661)
- Factory Reproduction
- Return Spring Bracket comes pre-installed
- Black Powder Coated Finish
- Fabricated from steel
- Mounting Hardware included for the return spring bracket
-
Southwest Speed Clutch Pedal Return Spring Bracket (#650-4663)
- Factory Reproduction
- Pre-installed on Clutch Pedal Assembly
- Black Powder Coated Finish
- Fabricated from steel
-
Southwest Speed Clutch Pedal Splined Output Arm (#650-4664)
- Factory Reproduction
- attaches to the clutch pedal push rod
- Splined hole for the clutch pedal shaft
- Fabricated from steel
- Includes the clamp bolt & nut
-
Southwest Speed Clutch Pedal Return Spring (#650-4668)
- Factory Reproduction
- Heavy Duty Spring fabricated from steel
-
Southwest Speed Clutch Pedal Return Spring Front Hanger (#650-4670)
- Factory Reproduction
- Used as the front hanger for the return spring
- Fabricated from steel
-
Southwest Speed Clutch Pedal Return Spring Rear Hanger (#650-4671)
- Factory Reproduction
- Used as the rear hanger for the return spring
- Fabricated from steel
Applications:
- 1957 Chevy Bel Air
- 1957 Chevy Del Ray
- 1957 Chevy 150
- 1957 Chevy 210
- 1957 Chevy Nomad
- 1957 Chevy Sedan Delivery
We also have the 1955 Chevy Clutch Pedal & Linkage Kit, and 1956 Chevy Clutch Pedal & Linkage Kit available & in stock ready to ship today.
