Description

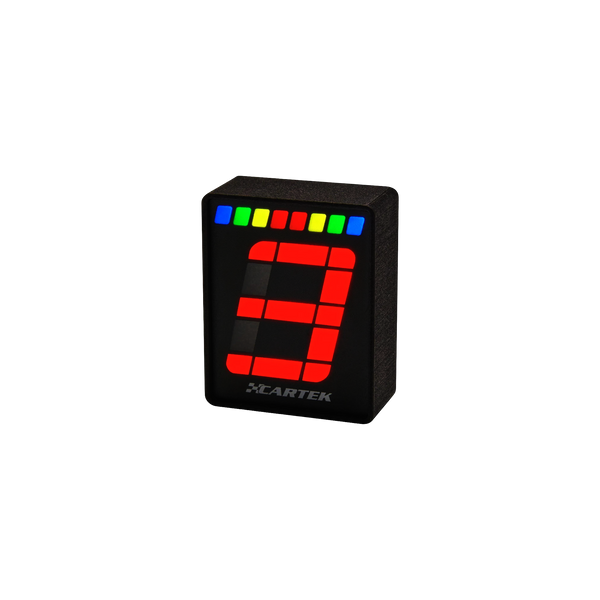

cartek gear indicator Vision Motorsport Engineering Products| Cartek Digital Gear Indicator Inc Shift LightThe GEAR INDICATOR from CARTEK is a dashboard mounted device that is designed to indicate to a driver the current selected transmission gear but also incorporates a sequential shift light display which can indicate to a driver the optimum time to shift up a gear. The selected gear is indicated by a large, multi coloured, 7 segment numerical display while the shift light function is displayed at the upper part of the unit by 8 multi coloured LEDs.
The GEAR INDICATOR from CARTEK is a dashboard mounted device that is designed to indicate to a driver the current selected transmission gear but also incorporates a sequential shift-light display which can indicate to a driver the optimum time to shift up a gear. The selected gear is indicated by a large, multi-coloured, 7 segment numerical display while the shift-light function is displayed at the upper part of the unit by 8 multi-coloured LEDs. These 8 LEDs form a display sequence that will commence at an engine speed prior to optimum and complete at precisely the optimum speed thereby giving the driver early indication to shift up before the rev limiter is reached or engine damage occurs.
OBD2 FEATURES:
-
Configure the lower and upper RPM settings with or without the engine running. Engine only needs to be revved to 50% of max RPM if setting up with engine running, or manually input RPM values using Push Button at rear of Gear Indicator.
-
Plug directly into the OBD2 Port - no additional wiring necessary. Gear Indicator (OBD2) receives Engine Speed and Road Speed data only.
-
Displays Gear Number by calculating the ratio between Engine Speed and Road Speed (after completing Gear Learn process).
-
Goes into standby mode when it detects the engine is off - therefore minimizes battery consumption when left plugged in.
-
Select from 6 LED display patterns for the Shift Light sequence and 7 Gear Indicator Digit Colours
-
Configure day and night brightness of the LEDs
-
Fully sealed for open-cockpit cars and motorcycles.
CLUB FEATURES:
-
Configure the lower and upper RPM settings with or without the engine running. Engine only needs to be revved to 50% of max RPM if setting up with engine running, or manually input RPM values using Push Button at rear of Gear Indicator.
-
Select from 6 LED display patterns for the Shift Light sequence and 7 Gear Indicator Digit Colours
-
Configure day and night brightness of the LEDs
-
Gear detection through RPM and Road speed signals, or through analogue signal input for Sequential Gearboxes.
-
Fully sealed for open-cockpit cars and motorcycles.
-
Additional RPM filter setting available designed for Historic applications
